Bushing Type Current Transformer

Bushing Type Current Transformer

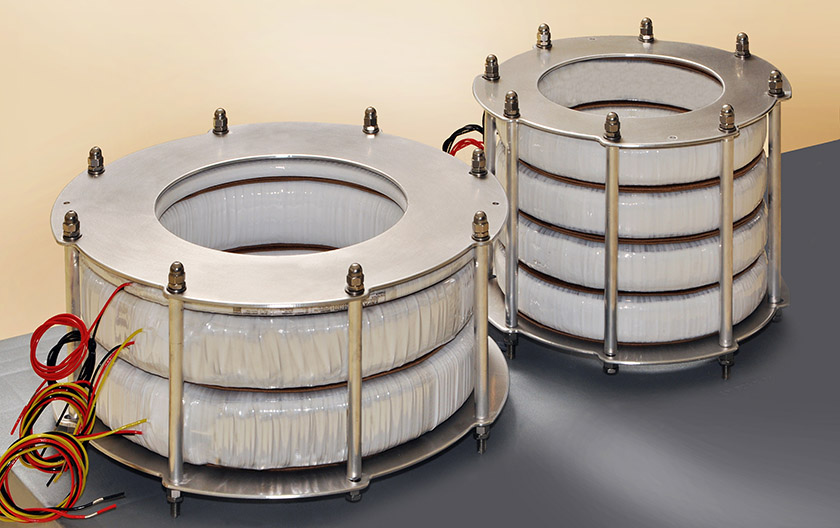

We Manufacturer Assembled & Non Assembled types of Bushing CTs.

Applications

Bushing current transformers are designed and manufactured in accor-dance with international standards and customer specifications. Generally used in power and distribution transformers in oil, gas insulated systems or air-insulated panels to measure the primary currents between 20 and 3000A.

According to the application area, crepe paper, woven polyester and polyester film, or their combination are used for their insulation. Production feasibilities based on dimension are as follows

  • Inner diameter ≥ 150 mm
  • Outside diameter ≤ 900mm
  • Height ≤ 140 mm
  • Weight ≤ 175 kg

Each Bushing current transformer is 100% routine tested in accordance to the standard which defined on its label and are reported to our clients. Transformers can be produced as a single unit or as a set by bringing together more than one unit.

The advantages of assembly set

  • Easy assembly,
  • All the materials are anti-magnetic
  • The drying process does not require,
  • Different identification application for secondary (color codes, plastic labels, etc.)
  • They can be used for all measuring and protection applications.

Technical Data

Rated primary current Ipr(A) 20...4000 A
Rated secondary current Is(A) 1A, 5A
Rated frequency fR 50Hz
Class rated burden (VA) Acc. to customer requirement
Accuracy Class Acc. to customer requirement
Insulation Level 0,72 / 3 / - kV
Rated short-time thermal current (Ith) min. 100*Ipr
Insulation class E
Standard IEC 60044, IS 2705
  • CTs are suitable for use in transformer oil.
  • Winding machines are latest & equipped with state of the art technology.
  • Our testing facility is upto 800 KV Ptotection class CTs & soon will be equipped with mfg. & testing of metering class CTs.
