CRNO Lamination
Cold-rolled non-grain-oriented steel is used in the stators and rotors of electric motors and generators of different capacity, and in ballast transformers, Induction furnaces, and other electrical equipment. It is produced in different alloying groups.
Our products range from non-alloyed silicon-free to high-alloyed non-grain oriented steel, to fully-processed or semi-processed standards. Up to 1,200mm wide, it ranges from 0.25mm to 0.50 mm in thickness.
Core Loss details of popularly used CRNGO steel. Manufacturing mills of CRNGO steel guarantee the core loss figure at flux density of 1.5 Tesla.
Silicon steel/electrical steel, usually referring to cold rolled silicon steel/electrical steel, can be divided into two major categories including grain oriented silicon steel/electrical steel and non-oriented silicon steel/electrical steel. Grain oriented silicon steel/electrical steel, with its easy magnetization direction parallel to the rolling direction, has excellent magnetic properties in this direction including low core loss, high permeability and low magnetostriction and is widely used in the transformer industry. Further it can obtain lower core loss by domain refinement treatment. Meanwhile non-oriented silicon steel/electrical steel, featured by random distribution of grain orientation and magnetic isotropy, is widely applicable to the motor industry.
The Non-Grain Oriented Silicon Electrical Steel has the advantages of excellent magnetic properties and high size accuracy. If there is a need of this product, please feel free to contact us, we will provide you with a quotation within 24 hours since receiving your inquiry.
Specifications
| Thickness | 0.25,0.27,0.35mm, 0.50mm, 0.65mm |
| Width | 40-1290mm |
| Inner Diameter | 508mm |
| Coating | Insulation coating of T2, T4, HW, C5 and C6 |
| Standard | GB/T2521-1996 |
Features
- Magnetic Properties: The magnetic properties of the product is featured by its low core loss, high permeability and excellent application performance
- Thickness Tolerance: The good thickness tolerance is characterized by small difference in thickness in a direction parallel to the direction of rolling, small difference in thickness in a direction perpendicular to the direction of rolling, and high lamination factor

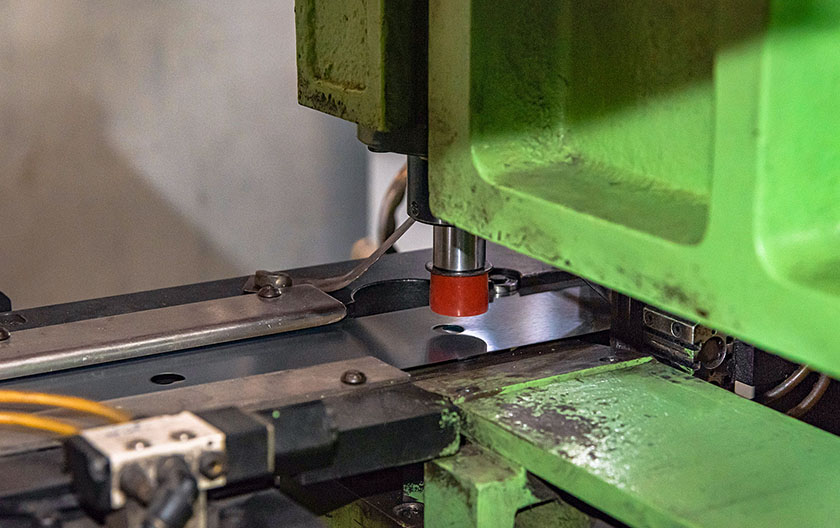

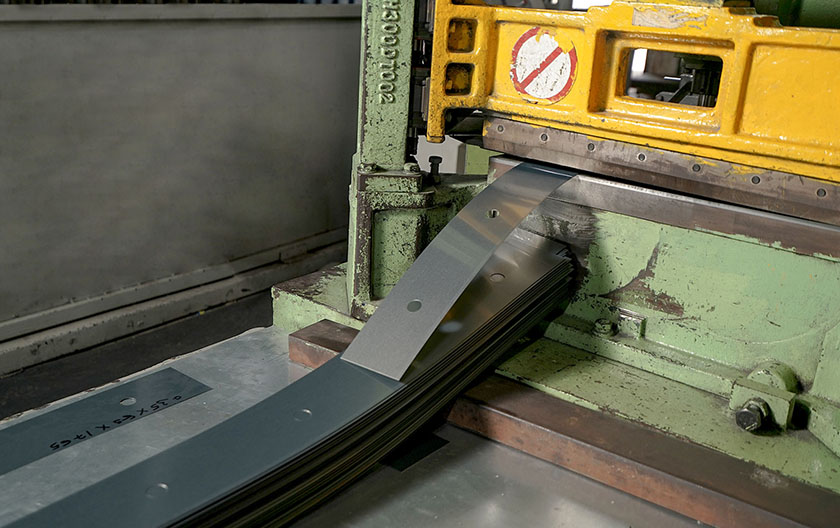

- Processing Properties: The product is suitable for punching and cutting with excellent dimensional tolerance
- Insulation Coating: The insulation coating has small color deviation, good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. There are several types of insulation coating available for production. According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and China environment protection laws and regulations including EU RoHS and REACH regulations
Applications
Non-Grain Oriented Silicon Electrical Steel is widely used in power generation equipment, locomotives, industrial motors and household appliances, such as power transformers, medium frequency motors, driven motors, compressor motors, relays and battery switches…etc.
